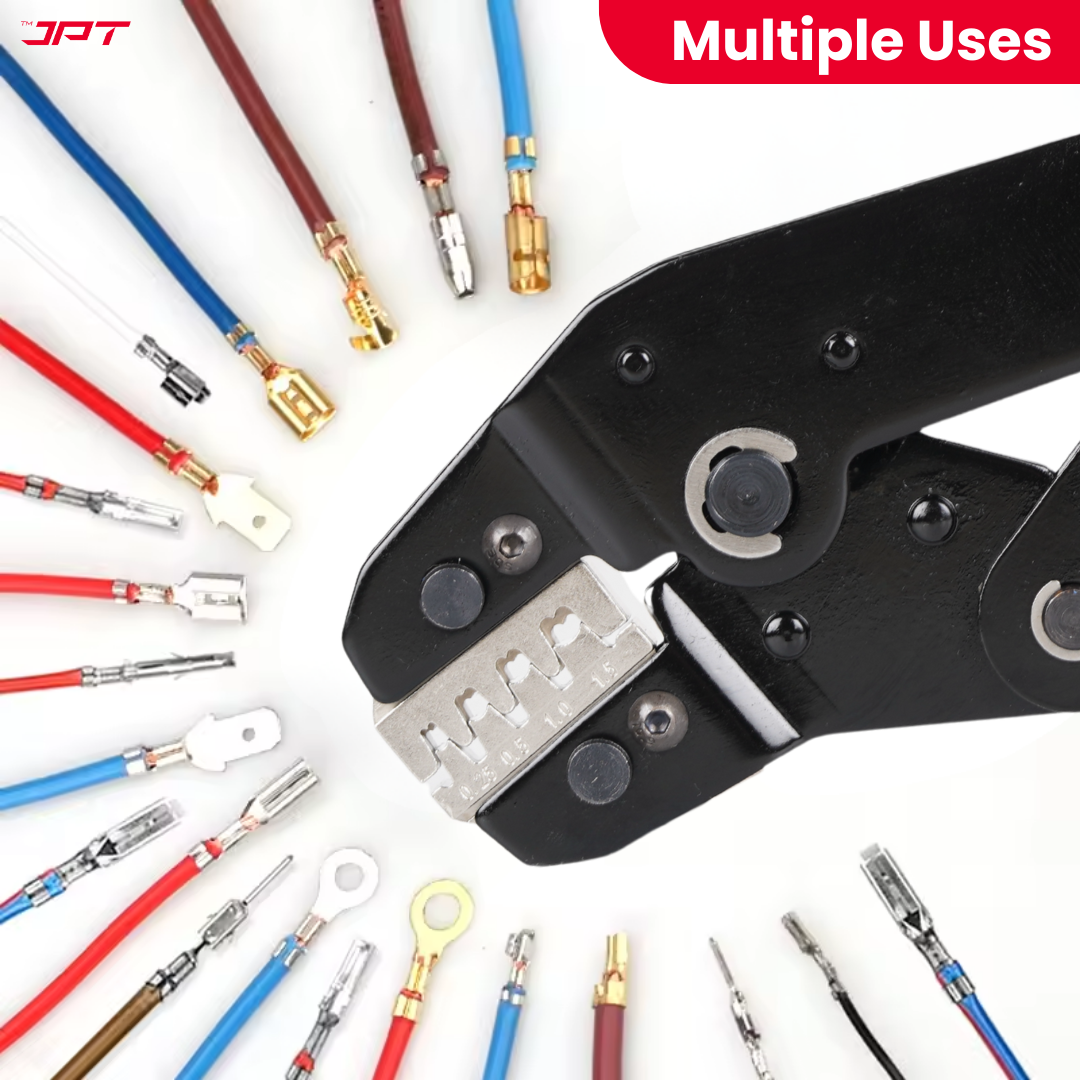

JPT Ratcheting Open-Barrel Wire Crimping Tool
A poorly crimped terminal can lead to overheating, signal loss, or complete electrical failure. This ratcheting wire crimper set removes inconsistency from the process by delivering controlled force, precise alignment, and repeatable results—making it a reliable choice for both professionals and advanced users.
Key Features

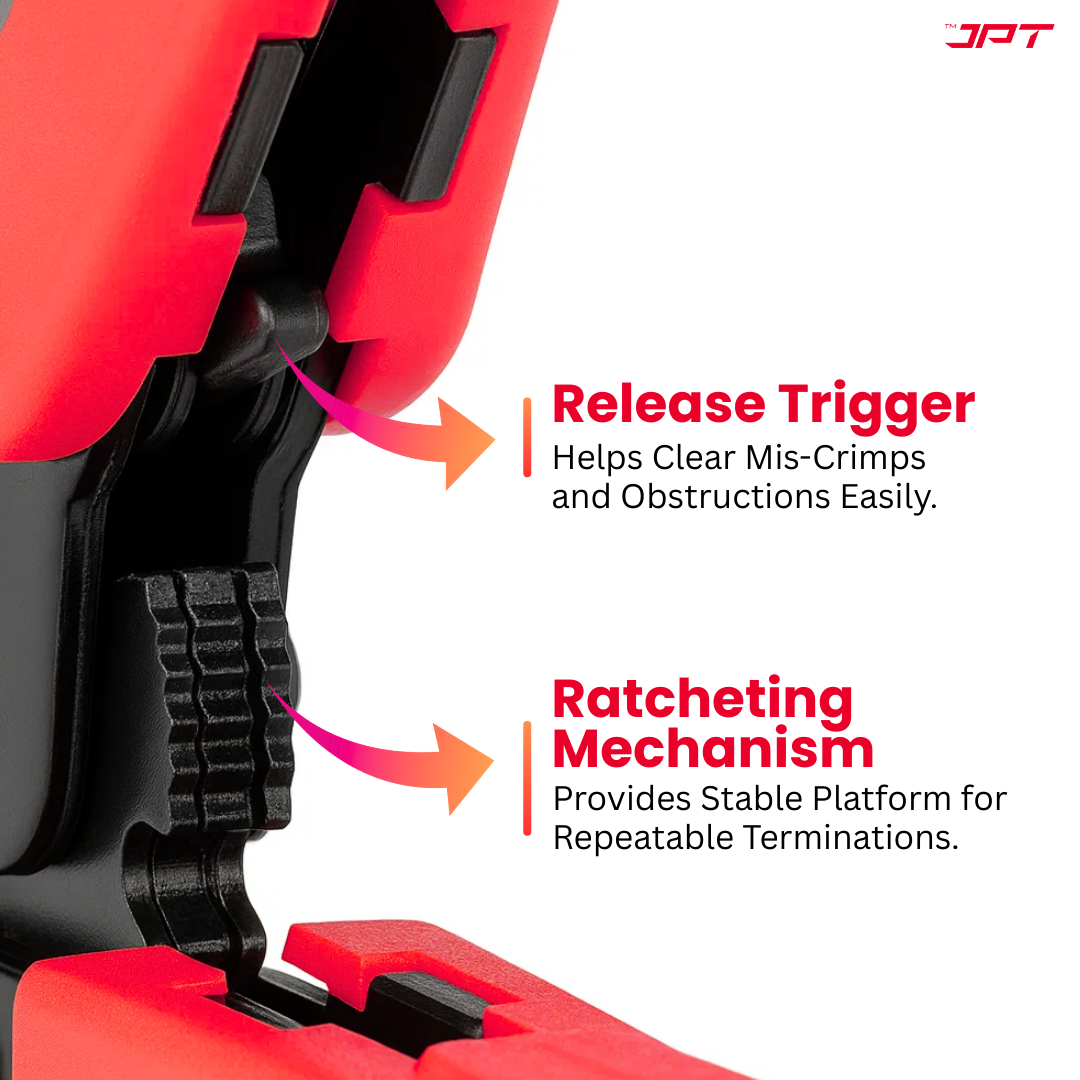

Ratcheting Crimping Mechanism
The built-in ratcheting system applies controlled and consistent pressure throughout the crimping cycle, ensuring the tool releases only after a full and proper crimp is achieved.
Open-Barrel B-Crimp Terminal
The JPT wire climping specifically designed for non-insulated open-barrel terminals, the tool forms an accurate B-crimp that securely wraps the conductor strands while supporting the insulation.

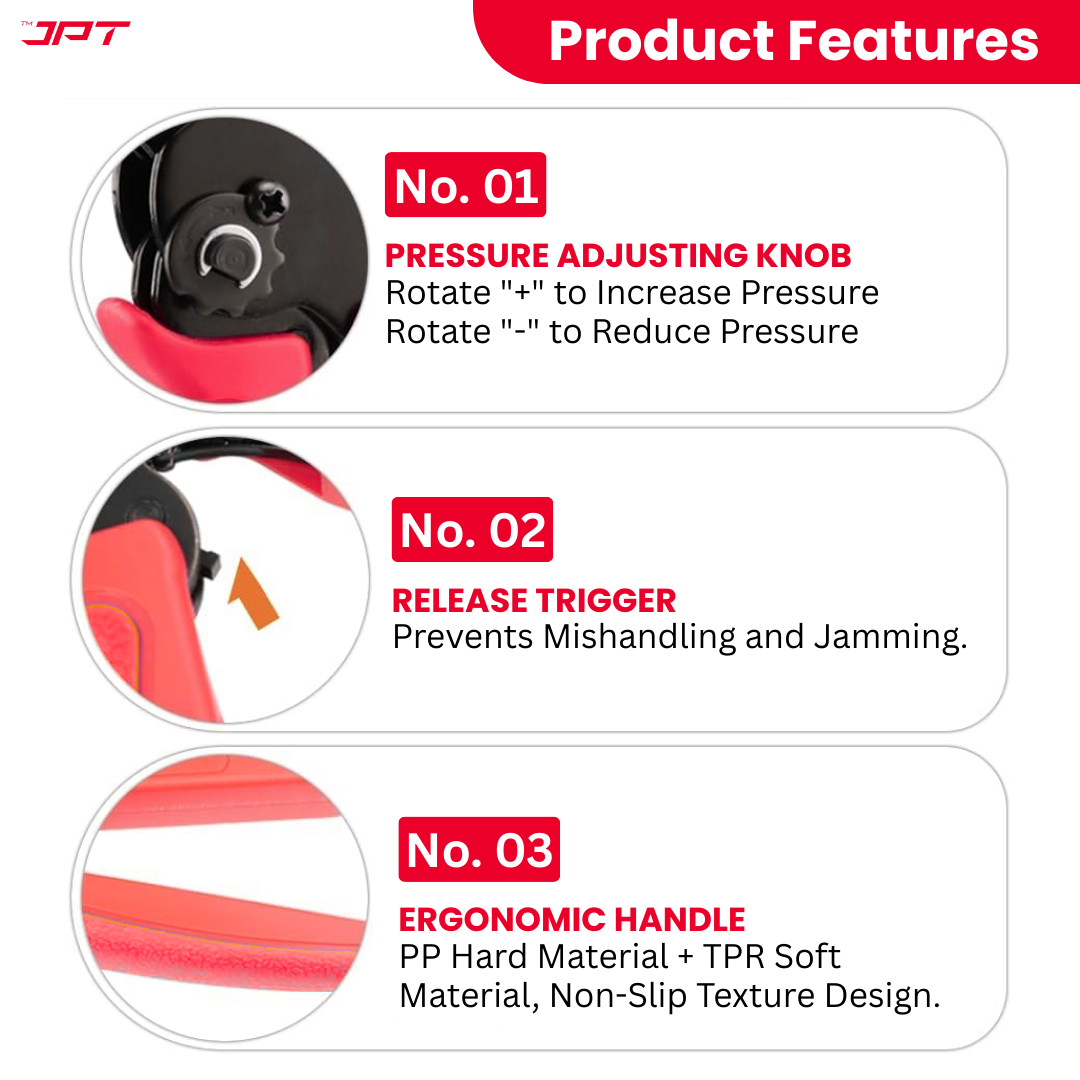

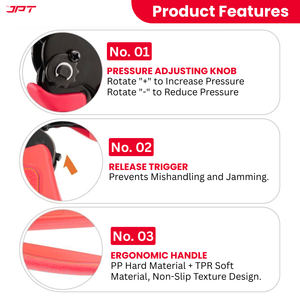

Adjustable Crimp Pressure
An integrated pressure adjustment mechanism allows fine tuning of crimp force to match different wire gauges and terminal thicknesses.
Machined Hardened Steel Dies
The crimping dies are machined from hardened steel to maintain accurate jaw alignment and consistent terminal shaping.
Quick-Release Safety Trigger
A built-in quick-release trigger allows immediate opening of the jaws if a terminal is mispositioned or an adjustment is needed mid-cycle.
Controllable Crimping
This wire climping feature with an adjustable crimping force mechanism, that allows precise control over crimping strength by adjusting the crimping height to suit different wire sizes and terminal thicknesses.

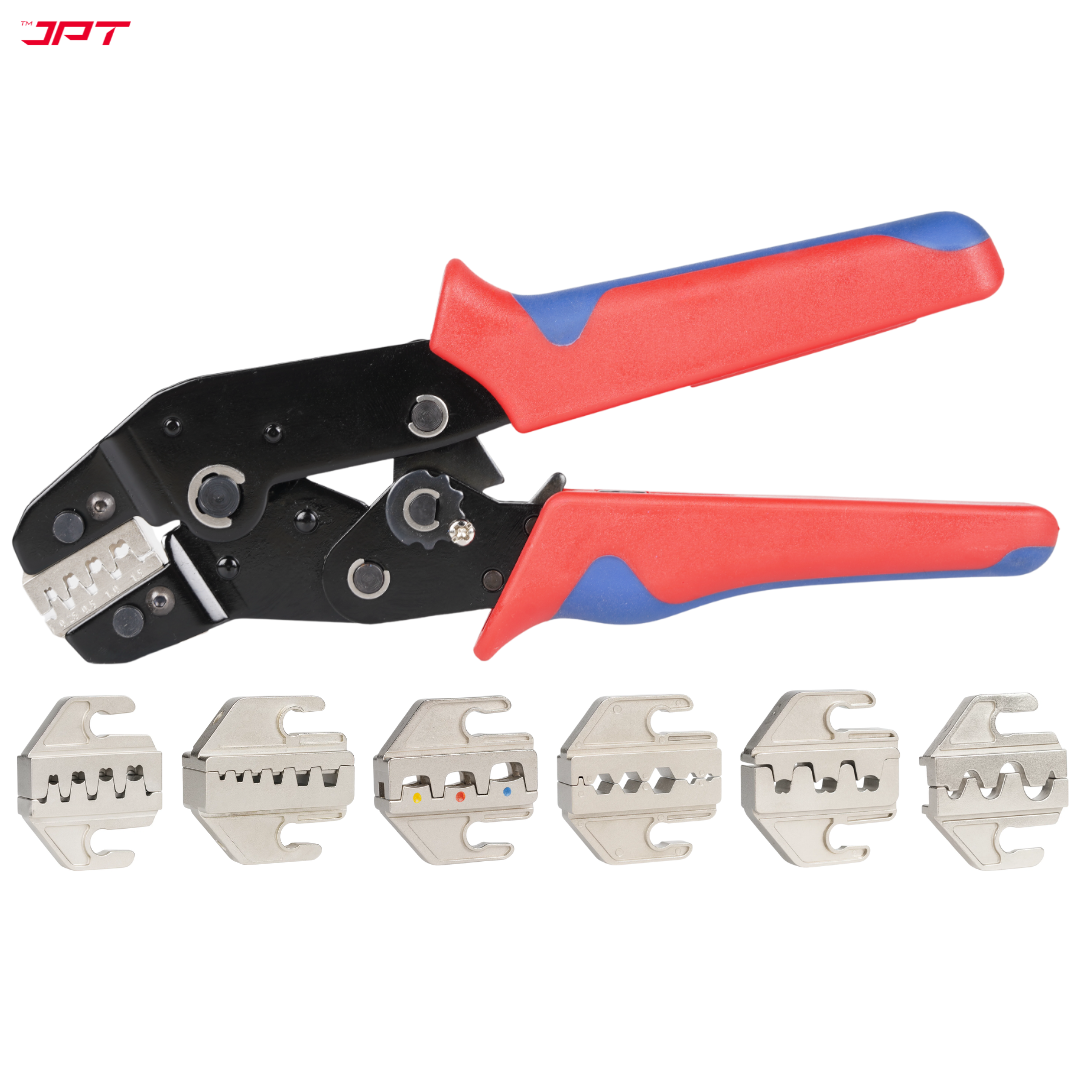

Dies kit Details
| Die Code | Wire Size (mm²) | Wire Size (AWG) |
|---|---|---|
| 58B | 0.25 – 1.5 mm² | AWG 26 – 16 |
| 2546B | 2.5 – 6.0 mm² | AWG 14 – 10 |
| 06WF | 0.25 – 6.0 mm² | AWG 24 – 10 |
| –6 | 0.5 – 6.0 mm² | AWG 20 – 10 |
| 03H | 0.4 – 1.28 mm² | Micro terminal range |
| 02C | 0.25 – 2.5 mm² | AWG 26 – 14 |
